CHEMICAL COMPOSITION

CHEMICAL COMPOSITION ( IN PERCENTAGE )
Grade C (Max) Mn (Max) P (Max) S (Max) Si (Max) Cr Ni Mo Nitrogen (Max) Cu/ Others
301 0.15 2.00 0.045 0.030 1.00 16.00 – 18.00 6.00 – 8.00 - 0.10 -
304 0.08 2.00 0.045 0.030 0.75 18.00 – 20.00 8.00- 10.50 - 0.10 -
304L 0.030 2.00 0.045 0.030 0.75 18.00 – 20.00 8.00- 12.00 - 0.10 -
310S 0.08 2.00 0.045 0.030 1.50 24.00- 26.00 19.00 – 22.00 - - -
316 0.08 2.00 0.045 0.030 0.75 16.00 – 18.00 10.00 – 14.00 2.00 – 3.00 0.10 -
316L 0.030 2.00 0.045 0.030 0.75 16.00 – 18.00 10.00 – 14.00 2.00 – 3.00 0.10 -
317 0.08 2.00 0.045 0.030 0.75 18.00 – 20.00 11.00 – 14.00 3.00 – 4.00 0.10 -
317L 0.030 2.00 0.045 0.030 0.75 18.00 – 20.00 11.00 – 15.00 3.00 – 4.00 0.10 -
321 0.08 2.00 0.045 0.030 0.75 17.00 – 19.00 9.00 – 12.00 - 0.10 Ti5 ( C + N ) Min or 0.70 max
347 0.08 2.00 0.045 0.030 0.75 17.00 – 19.00 9.00 – 13.00 - - Cb= 10x ( C Min ) or 1.00 Max
409 0.08 1.00 0.040 0.010 1.00 10.50 – 11.75 0.50 - - Ti= 6x (C+ N ) Min or 0.70 Max
409M 0.03 0.81.2 0.030 0.030 0.40.75 11.00- 12.00 1.5 max. - - Ti= 6x (C) Min or 0.70 Max
410S 0.08 1.00 0.040 0.030 1.00 11.50- 13.50 0.60 - - -
410 0.15 1.00 0.040 0.030 1.00 11.50- 13.50 0.75 - - -
420 0.35 0.50 0.035 0.015 0.50 12.00 – 13.00 0.20.3 - - -
430 0.12 1.00 0.040 0.030 1.00 16.00 – 18.00 0.75 - - -
JSL AUS 0.08 7.08.0 0.070 0.030 0.75 15.50 – 16.50 4.25 – 4.75 - - 0.9 – 1.10
JS- 203 0.08 9.2510.25 0.070 0.030 0.75 14.25 – 15.25 2.25 – 2.75 - - 1.60- 2.0
301M 0.10 4.55.5 0.060 0.030 0.75 14.50 – 15.50 6.0 – 7.0 - - 1.70- 1.90
* Thickness of 1.27mm & below will have elongation of 20% min.

MECHANICAL COMPOSITION

MECHANICAL PROPERTIES
Grade Tensile
Strength Mpa, (Min)		 Yield
Strength
Mpa, (Min)		 %Age
Elongation
in 50mm
gauge length min		 Hardness (Max)
BHN Rb
301 515 205 40 217 95
304 515 205 40 201 92
304L 485 170 40 201 92
310S 515 205 40 217 95
316 515 205 40 217 95
316L 485 170 40 217 95
317 515 205 35 217 95
317L 515 205 40 217 95
321 515 205 40 217 95
347 515 205 40 201 92
409 380 170 20 179 88
409M 430 275 20 187 90
410S 415 205 22 183 89
410 450 205 20 217 89
420 700( max ) - 15 217 95
430 450 205 22 183 89
JSL AUS 515 205 40 217 95
JS- 203 515 205 40 217 95
301M 515 205 40 217 95

CARBON STEEL CHEMICAL & MECHANICAL


CHEMICAL ANALYSIS
 Mechnical Properties SPECIFIC REQUIREMENT
Tensile Strength Yield Strength Elongation
Specification WT C% Mn% P% MAX S% MAX Si% Cr% Mo% Mpa Mpa 50mm MIN Longitudinal
ASTM A 53/A AW 0.25MAX 0.95MAX 0.050 0.060 - - - 331MIN 207 MIN 36 Cr     Mo   Cu
ASTM A 53/B AW 0.30MAX 1.20MAX 0.050 0.060 - - - 413MIN 240MIN 29.5 Ni    Va
ASTM A 106/A AW 0.25MAX 0.27-0.93 0.025 0.025 0.10MIN 0.40MAX 0.15MAX 330MIN 205MIN 35/28 0.40 0.15 0.40 0.40
ASTM A 106/B AW 0.30MAX 0.29-1.06 0.025 0.025 0.10MIN 0.40MAX 0.15MAX 415MIN 240MIN 30/22 0.08
ASTM A 106/C AW 0.35MAX 0.29-1.06 0.025 0.025 0.10MIN 0.40MAX 0.15MAX 485MIN 275MIN 30/22 five elements not to exceed 1%
ASTM A 179 MW 0.06-018 0.27-0.63 0.048 0.048 - - - 325MIN 180MIN 35.0 Hardness 72 HRB MAX
ASTM A 214 MW 0.18MAX 0.27-0.63 0.050 0.050 - - - 385MIN 180MIN 35.0 Hardness 72 HRB MAX
ASTM A 192 MW 0.06-0.18 0.27-0.63 0.048 0.048 0.25MAX - - 325MIN 180MIN 35.0 Hardness 77 HRB MAX
ASTM A 209/T1 MW 0.10-0.20 0.30-0.80 0.045 0.045 0.10-0.50 - 0.44-0.65 380MIN 205MIN 30/22 Hardness 80 HRB MAX
ASTM A 209/T1a MW 0.15-0.25 0.30-0.80 0.045 0.045 0.10-0.50 - 0.44-0.65 365MIN 195MIN 30/22 Hardness 81 HRB MAX
ASTM A 209/T1B MW 0.14MAX 0.30-0.80 0.045 0.045 0.10-0.50 - 0.44-0.65 415MIN 220MIN 30/22 Hardness 77 HRB MAX
ASTM A 210/A-1 MW 0.27MAX 0.93MAX 0.048 0.058 0.10MIN - - 415MIN 255MIN 30/22 Hardness 79 HRB MAX
ASTM A 210/C MW 0.35MAX 0.29-1.06 0.048 0.058 0.10MIN - - 485MIN 275MIN 30/22 Hardness 89 HRB MAX
ASTM A 213/T2 MW 0.10/0.20 0.30-0.61 0.045 0.045 0.10-0.30 0.50-0.81 0.44-0.65 415MIN 205MIN 30/22 Hardness 85 HRB MAX
ASTM A 213/T5 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50MAX 4.00-6.00 0.44-0.65 415MIN 205MIN 30/22 Hardness 85 HRB MAX
ASTM A 213/T11 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50-1.00 1.00-1.50 0.44-0.65 415MIN 205MIN 30/22 Hardness 85 HRB MAX
ASTM A 213/T12 MW 0.15MAX 0.30-0.61 0.045 0.045 0.50MAX 0.80-1.25 0.44-0.65 415MIN 205MIN 30/22 Hardness 85 HRB MAX
ASTM A 213/T22 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50MAX 1.90-2.60 0.87-1.13 415MIN 205MIN 30/22 Hardness 85 HRB MAX
ASTM A 333/1 AW 0.30MAX 0.40-1.06 0.025 0.025 - - - 380MIN 205MIN 25/20 Impact AS-50F
ASTM A 333/6 AW 0.30MAX 0.29-1.06 0.025 0.025 0.10MIN - - 415MIN 240MIN 30/22 FOR 40X10J/18/14
ASTM A 334/1 AW 0.30MAX 0.40-1.06 0.025 0.025 - - - 380MIN 205MIN 35/28 -50F 40X10J/18/14
ASTM A 334/6 AW 0.30MAX 0.29-1.06 0.025 0.025 0.10MIN - - 415MIN 240MIN 30/22 90 HRB MAX
ASTM A 335/P1 AW 0.10-0.20 0.30-0.80 0.025 0.025 0.10-0.50 - 0.44-0.65 380MIN 205MIN 30/22
ASTM A 335/P2 AW 0.10-0.20 0.30-0.61 0.025 0.025 0.10-0.30 0.50-0.81 0.44-0.65 380MIN 205MIN 30/22
ASTM A 335/P5 AW 0.15MAX 0.30-0.60 0.025 0.025 0.50MAX 4.00-6.00 0.45-0.65 415MIN 205MIN 30/22
ASTM A 335/P9 AW 0.15MAX 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.09-1.10 415MIN 172MIN 30/22
ASTM A 335/P11 AW 0.15MAX 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65 415MIN 205MIN 30/22
ASTM A 335/P12 AW 0.15MAX 0.30-0.61 0.025 0.025 0.50MAX 0.80-1.25 0.44-0.65 415MIN 205MIN 50/22
ASTM A 335/P22 AW 0.15MAX 0.30-0.60 0.025 0.025 0.50MAX 1.90-2.60 0.87-1.13 415MIN 205MIN 30/22
BS/3059/1/33 0.15MAX 0.30-0.70 0.050 0.050 - - - 324-441 186MIN 25
BS/3059/2/33   0.15MAX 0.40-0.70 0.050 0.050 0.10-0.35 - - 324-441 186MIN 21
BS/3059/2/45   0.12-0.18 0.90-1.20 0.035 0.035 0.10-0.35 - - 441-560 245MIN 22
BS/3059/2/620   0.10-0.15 0.40-0.70 0.040 0.040 0.10-0.35 0.70-1.10 0.45-0.65 441-618 235MIN 22
DIN/17175/ST35.8   0.17MAX 0.40MIN 0.040 0.040 0.35MAX - - 340-441 235MIN 25
DIN/17175/ST45.8   0.22MAX 0.45MIN 0.040 0.040 0.10-0.35 - - 441-540 255MIN 25
DIN/17175/15MO3   0.12-0.20 0.50-0.80 0.040 0.040 0.10-0.35 - 0.25-0.35 441-540 284MIN 21
DIN/17175/13CrMO44   0.10-0.18 0.40-0.70 0.040 0.040 0.10-0.35 0.70-1.60 0.40-0.50 441-570 294MIN 22
DIN/17175/10CrM910   0.15MAX 0.40-0.60 0.040 0.040 0.15-0.50 2.0-2.5 0.9-1.10 441-570 294MIN 22
ASTM A 199/T5 MW 0.50-0.15 0.30-0.60 0.030 0.030 0.50MAX 4.00-6.00 0.45-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 199/T11 MW 0.50-0.15 0.30-0.60 0.030 0.030 0.50-1.00 1.00-1.50 0.44-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 199/T22 MW 0.50-0.15 0.30-0.60 0.030 0.030 0.50MAX 1.90-2.60 0.87-1.13 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 199/T4 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50-1.00 2.15-2.85 0.44-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 199/T7 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50-1.00 6.00-8.00 0.45-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 200/T5 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50-1.00 4.00-6.00 0.45-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 200/T11 MW 0.50-0.15 0.30-0.60 0.030 0.030 0.50-1.00 1.00-1.50 0.44-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 200/T22 MW 0.50-0.15 0.30-0.60 0.030 0.030 0.50MAX 1.90-2.60 0.87-1.13 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 200/T4 MW 0.50-0.15 0.30-0.60 0.030 0.030 0.50-1.00 2.15-2.85 0.44-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 200/T7 MW 0.15MAX 0.30-0.60 0.030 0.030 0.50-1.00 6.00-8.00 0.45-0.65 415MIN 170MIN 30/22 Hardness 85 HRB MAX
ASTM A 199/T9 MW 0.15MAX 0.30-0.60 0.030 0.030 0.25-1.00 8.00-10.0 0.90-1.10 415MIN 170MIN 30/22 Hardness 85 HRB MAX

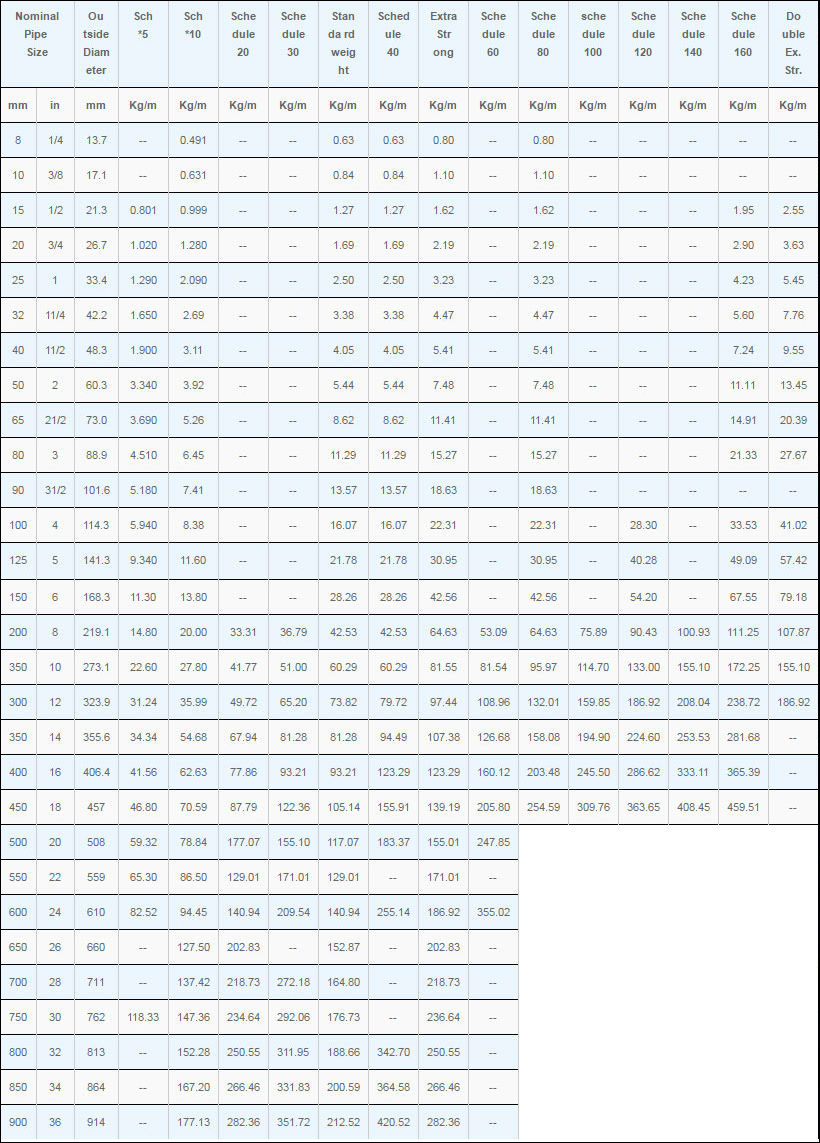

Weight & Dimensions of Schedule Pipe


STAINLESS STEEL PIPE

Nominal Pipe Size Outside Diameter Schedule 5 S Schedule 10 S Schedule 20 S Schedule 40 S Schedule 80 S Schedule 160 S XXS
mm inch mm WT mm WEIGHT (KGM) WT mm WEIGHT (KGM) WT mm WEIGHT (KGM) WT mm WEIGHT (KGM) WT mm WEIGHT (KGM) WT mm WEIGHT (KGM) WT mm WEIGHT (KGM)
3 1/8 10.3 1.2 0.20 1.24 0.28 1.5 0.33 1.73 0.37 2.41 0.47 - - - -
6 1/4 13.7 1.2 0.37 1.65 0.49 2.00 0.58 2.24 0.630 3.02 0.80 - - - -
10 3/8 17.1 1.2 0.47 1.65 0.63 2.00 0.74 2.31 0.840 3.20 1.10 - - - -
15 1/2 21.3 1.65 0.80 2.11 1.00 2.30 1.07 2.77 1.27 3.73 1.62 4.75 1.94 7.47 2.55
20 3/4 26.7 1.65 1.03 2.11 1.28 2.55 1.52 2.87 1.69 3.91 2.20 5.56 2.90 7.82 3.64
25 1 33.4 1.65 1.30 2.77 2.09 2.55 1.94 3.38 2.50 4.55 3.24 6.35 4.24 9.09 5.45
32 1.1/4 42.2 1.65 1.65 2.77 2.70 3.00 2.90 3.56 3.39 4.85 4.47 6.35 5.61 9.70 7.77
40 1.1/2 48.3 1.65 1.91 2.77 3.11 3.00 3.55 3.68 4.05 5.08 5.41 7.14 7.25 11.1 10.18
50 2 60.3 1.65 2.40 2.77 3.93 3.00 4.24 3.91 5.44 5.54 7.48 8.74 11.11 11.07 13.44
65 2.1/2 73.0 2.11 3.69 3.05 5.26 4.00 6.81 5.16 8.63 7.01 11.41 9.53 14.91 14.02 20.39
80 3 88.9 2.11 4.51 3.05 6.45 4.00 8.37 5.49 11.29 7.62 15.27 11.1 21.30 15.24 27.68
100 4 114.3 2.11 5.84 3.05 8.36 4.50 12.18 6.02 16.07 8.56 22.32 13.49 33.54 17.12 41.03
125 5 141.3 2.77 9.47 3.40 11.57 5.00 16.80 6.55 21.8 9.53 30.97 15.88 49.11 19.05 57.43
150 6 168.3 2.77 11.32 3.40 13.84 6.35 25.36 7.11 28.26 10.97 42.56 18.25 67.53 21.95 79.22
200 8 219.1 2.77 14.79 3.76 19.96 6.35 33.31 8.18 42.55 12.7 64.64 23.01 111.27 22.23 107.92
250 10 273.1 3.40 22.63 4.19 27.78 6.35 41.77 9.27 60.31 12.7 96.01 28.58 172.33 25.40 155.15
300 12 323.8 3.96 31.25 4.57 36.00 6.35 49.7 9.53 73.88 12.7 132.05 33.32 238.76 25.40 186.97
350 14 355.6 3.96 34.36 4.78 41.3 7.92 67.80 11.13 94.59
ASTM A 312 TP 304
ASTM A 312 TP 316L
ASTM A 312 TP 317L
400 16 406.4 4.19 41.56 4.78 47.29 7.92 77.83 12.7 123.30
450 18 457.2 4.19 46.81 4.78 53.26 7.92 87.71 14.27 155.80
500 20 508.0 4.78 59.25 5.54 68.61 9.53 117.14 15.09 183.42
600 24 610.0s 5.54s 82.47 6.35 94.45 9.53 141.12 17.48 255.41

CARBON STEEL SEAMLESS PIPE

Nominal Pipe Size O/D Schedule 10 Schedule 20 Schedule 30 Schedule STD Schedule 40 Schedule 60 Schedule Extra Strong (XS) Schedule 80 Schedule 100 Schedule 120 Schedule 140 Schedule 160 Schedule Double Extra Strong
mm inch Mm mm Kg/m mm Kg/m mm Kg/m Wall wt. Wall wt. Wall wt. Wall wt. Wall wt. Wall wt. Wall wt. Wall wt. Wall wt. Wall wt.
z3 1/8 10.3             1.73 0.37 1.73 0.37     2.41 0.47 2.41 0.47
6 1/4 13.7             2.24 0.63 2.24 0.63     3.02 0.80 3.02 0.80
10 3/8 17.1             2.31 0.84 2.31 0.84     3.20 1.10 3.20 1.10
15 1/2 21.3             2.77 1.27 2.77 1.27     3.73 1.62 3.73 1.62             4.78 1.95 7.5 2.55
20 3/4 26.7             2.87 1.69 2.87 1.69     3.91 2.20 3.91 2.20             5.6 2.90 7.82 3.64
25 1 33.4             3.38 2.50 3.38 2.50     4.55 3.24 4.55 3.24             6.4 4.24 9.0 5.45
32 1.1/4 42.2             3.56 3.39 3.56 3.39     4.85 4.47 4.85 4.47             6.4 5.61 9.7 7.77
40 1.1/2 48.3             3.68 4.05 3.68 4.05     5.08 5.41 5.08 5.41             7.14 7.25 10.2 9.56
50 2 60.3             3.9 5.44 3.9 5.44     5.5 7.48 5.5 7.48             8.7 11.11 11.1 13.4
65 2.1/2 73/0             5.16 8.63 5.16 8.63     7.0 11.41 7.0 11.41             9.5 14.92 14.0 20.4
80 3 88.9             5.5 11.3 5.5 11.3     7.62 15.3 7.14 15.3             11.13 21.35 15.24 27.7
90 3.1/2 101.6             5.74 13.57 5.74 13.57     8.08 18.63 8.08 18.63                 16.2 34.1
100 4 114.3             6.02 16.07 6.02 16.07     8.56 22.3 8.56 22.3   11.13 11.13 28.32     13.5 33.5 17.12 41.03
125 5 141.3             6.55 21.77 6.55 21.77     9.53 30.9 9.53 30.9   12.7 12.7 40.2     15.9 49.11 19.0 57.4
150 6 168.3             7.11 28.26 7.11 28.26     10.97 42.5 10.9 42.5   14.3 14.3 54.2     18.3 67.5 21.95 79.22
200 8 219.1     6.35 33.3 7.0 36.8 8.2 42.5 8.2 42.5 10.3 53.1 12.7 64.6 12.7 64.5 15.1 75.92 18.3 90.4 20.6 100.9 23.0 111.27 22.23 108.0
250 10 273.0     6.35 41.7 7.8 51.3 9.27 60.3 9.27 60.3 12.7 81.5 12.7 81.5 15.1 96.0 18.3 114.7 21.44 133.0 25.4 155 28.6 172.3 25.4 155.0
300 12 323.8     6.35 49.7 8.4 65.2 9.53 73.8 10.3 79.7 14.3 109.0 12.7 97.4 17.4 132.0 21.4 160.0 25.4 187.0 28.6 208 33.3 238.7 25.4 187.0
350 14 355.6 6.35 54.6 7.92 68.1 9.53 81.3 9.53 81.3 11.13 94.6 15.1 126.4 12.7 107.0 19.0 158.0 23.8 195.0 27.8 224.0 31.8 253.5 36.7 281
400 16 406.4 6.35 62.6 7.92 77.9 9.5 93.3 9.53 93.3 12.7 123.0 16.7 160.0 12.7 123.0 21.44 203.0 26.2 245.0 30.9 286.0 36.53 333 40.5 366.0
450 18 457.2 6.35 70.5 7.92 87.7 11.1 122.0 9.53 105.0 14.3 156.0 19.0c 206.0 12.7 130.0 23.8 254.0 21.4 310.0 34.0 363.0 39.7 408.3 45.2 459.0
500 20 508.0 6.35 78.5 9.53 117.2 12.7 155.1 9.53 117.2 15.1 183.0 20.6 248.0 12.7 155.1 26.2 311.0 32.5 381.0 38.1 441.0 44.4 508 50.0 564.0
550 22 558.8 6.35 86.4 9.53 129.0 12.7 171.0 9.53 129.0     22.2 294.0 12.7 171.0 28.6 373.0 34.0 451.0 41.3 526.0 47.6 600 54.0 672.0
600 24 600.5 6.35 94.5 9.53 141.0 14.3 210.0 9.53 141.0 17.4 255.0 24.5 355.0 12.87 187.0 30.9 442.0 38.8 547.7 46.0 640.0 52.4 720 59.5 808.0
650 26 660.4 7.92 127.0 12.7 203.0     9.53 153.0       202 12.7
A 106 Gr B
API - 5L - Gr B
A 33 Gr 6
A 335 P 5
700 28 711.0 7.92 137.4 12.7 218.0 15.8 292.0 9.53 165.0       218 12.7
750 30 762.0 7.92 147.0 12.7 234.6 15.8 292.6 9.53 176.0       234 12.7
800 32 812.8 7.92 157.0 12.7 250.6 15.8 312.5 9.53 188.2   364.9   251 12.7
850 34 863.6 7.92 167.0 12.7 282.4 15.8 351.7 9.53 200.0 17.5 420.4   266 12.7
900 36 914.4 7.92 176.6 12.7 282.4 15.8 352.2 9.53 212.0 19.1     282 12.7

LINE PIPE WEIGHT


NICKEL ALLOY DATA


Analyses     Analyses   Composition
Handelsbezeichung
Designation Comercial
Comercial designation		 C% Co% Cr% Mo% Ni% V% W% Ai% Cu% Nb/Cb Ta% Ti% Fe% Sonstige Autres-Other%
Monel 400 0.12 - - - 65.0 - - - 32.0 - - 1.5 Mn 1.0
Monel 401 0.10 - - - 43.0 - - - 53.0 - - 0.75 Si 0.25; Mn 2.25
Monel 404 0.15 - 52.0-57.0 - - 0.05 rest/bal - - 0.50 Mn 0.10; Si 0.10;S o.024
Monel 502 0.10 - - - 63.0-17.0 - - 2.5-3.5 rest/bal - 0.50 2.0 Mn 1.5;Si 0.5; S 0.010
Monel K 500 0.13 - - - 64.0 - - 2.8 30.0 - 0.6 1.0 Mn 0.8
Monel R 405 0.15 - - - 66.0 - - - 31.0 - - 1.2 Mn 1.0; S 0.04
Hastelloy B 0.10 1.25 0.60 28.0 rest/bal 0.30 - - - - - 5.50 Mn 0.80; Si 0.70
Hastelloy B2 0.02 1.0 1.0 26.0-30.0 rest/bal - - - - - - 2.0 Mn 1.0: Si 0.10
Hastelloy C 0.07 1.25 16.0 17.0 rest/bal 0.30 40 - - - - 5.75 Mn 1.0 :Si 0 0.70
Hastelloy C4 0.015 2.0 14.0-18.0 14.0-17.0 rest/bal - - - - - 0..70 3.0 Mn 1.0 ; Si 0.08
Hastelloy  C 276 0.02 2.5 14.0-16.5 15.0-17.0 rest/bal 0.35 3.0-4.5 - - - - 4.0-7.0 Mn 1.0;Si 0.05
Hastelloy F 0.02 1.25 22.0 6.5 rest/bal - 0.50 - - Nb2.10 - 21.0 Mn 1.50;Si 0.50
Hastelloy G 0.05 2.5 21.0-23.5 5.5-7.5 rest/bal - 1.0 - 1.5-2.5 Nb1.75-2.5 - 18.0-21.0 Mn 1.0-2.0;p0.04;Si 1.0;80.03
Hastelloy G-2 0.03 - 23.0-26.0 5.0-7.0 47.0-52.0 - - - 0.70-1.20 - 0.70-1.50 rest/bal Mn 1.0;Si 1.0
Hastelloy N 0.06 0.25 7.0 16.5 rest/bal - 0.20 - 0.10 - - 3.0 Mn 0.40;Si 0.25;B0.01
Hastelloy S 0.02 2.0 15.5 14.5 rest/bal 0.6 1.0 0.20 - - - 3.0 Mn 0.50;Si 0.40;B0.0009;LA 0.02
Hastelloy W 0.06 1.25 5.0 24.5 rest/bal - - - - - - 5.5 Mn 0.050 ; Si 0.50
Hastelloy X 0.10 1.50 22.0 9.0 rest/bal - 0.60 - - - 18.5 - Mn 0.6; Si 0.60
Incoloy 800 0.04 - 21.0 - 32.0 - - 0.3 - - 0.4 45.0 -
Incoloy 800 H 0.08 - 21.0 - 32.0 - - 0.3 - - 0.4 45.0 -
Incoloy 801 0.05 - 20.5 - 32.0 - - - - - 1.1 45.0 -
Incoloy 802 0.35 - 21.0 - 32.0 - - 0.6 - - 0.7 45.0 -
Incoloy 804 0.05 - 29.5 - 41.0 - - 0.3 - - 0.6 25.4 -
Incoloy 805 0.12 - 7.5 0.50 36.0 - - - 0.10 - - rest/bal Mn 0.60;Si 0.50
Incoloy 810 0.25 - 21.0 - 32.0 - - - 0.50 - - rest/bal Mn 0.90; Si 0.80
Incoloy 825 0.04 - 21.0 3.0 42.0 - - - 2.0 - 1.0 30.0 -
Incoloy 825 Cp 0.04 - 21.5 3.0 42.0 - - - 2.2 Nb0.9 - 30.0 -
Incoloy 840 0.08 - 20.0 - 20.0 - - - - - - rest/bal Mn 1.0;Si 1.0
Incoloy 901 0.05 - 12.5 6.0 rest/bal - - 0.15 - - 2.70 34.0 Mn 0.24;Si 0.12;B0.015
Incoloy 901 Mod 0.05 - 12.5 5.80 rest/bal - - - - - 2.9 34.0 Mn 0.09;Si 0.08;B0.015
Incoloy 903 0.02 15.0 - - 38.0 - - 0.7 - Nb 3.0 1.4 41.0 -
Incoloy 904 0.02 14.0 - - 33.0 - - - - - 1.7 50.0 -
Incoloy DS 0.06 - 18.0 - 37.0 - - - - - - 42.0 Mn 1.0; Si 2.3
Incoloy Ma  956 - - 20.0 - - - - 4.5 - - 0.5 74.4 Y2.03 0.5
Incoloy 600 0.05 - 15.5 - 75.0 - - - - - - 8.0 -
Incoloy 601 0.05 - 23.0 - 60.0 - - 1.4 - - - 14.0 -
Incoloy 604 0.04 - 15.8 - rest/bal - - - 0.10 Nb 2.0 - 7.20 Mn 0.20; Si 0.20
Incoloy 610 0.20 - 15.5 - rest/bal - - - 0.50 Nb 1.0 - 9.0 Mn 0.90;Si 2.0
Incoloy 617 0.07 12.5 22.5 9.0 54.0 - - 1.0 - - - - -
Incoloy 625 0.05 - 21.5 9.0 61.0 - - 0.40 - Nb 3.65 0.40 2.5 Mn 0.50; Si 0.50
Incoloy 671 0.05 - 48.0 - 51.0 - - - - - 0.35 - -
Incoloy 700 0.12 28.5 15.0 3.75 46.0 - - 3.0 0.05 - 2.20 0.70 Mn 0.10; Si 0.30
Incoloy 702 0.04 - 15.6 - rest/bal - - 3.4 0.10 - 0.70 0.35 Mn 0.05: Si 0.20
Incoloy 705 0.30 - 15.5 - rest/bal - - - 0.50 - - 8.0 Mn 0.90 ; Si 5.5

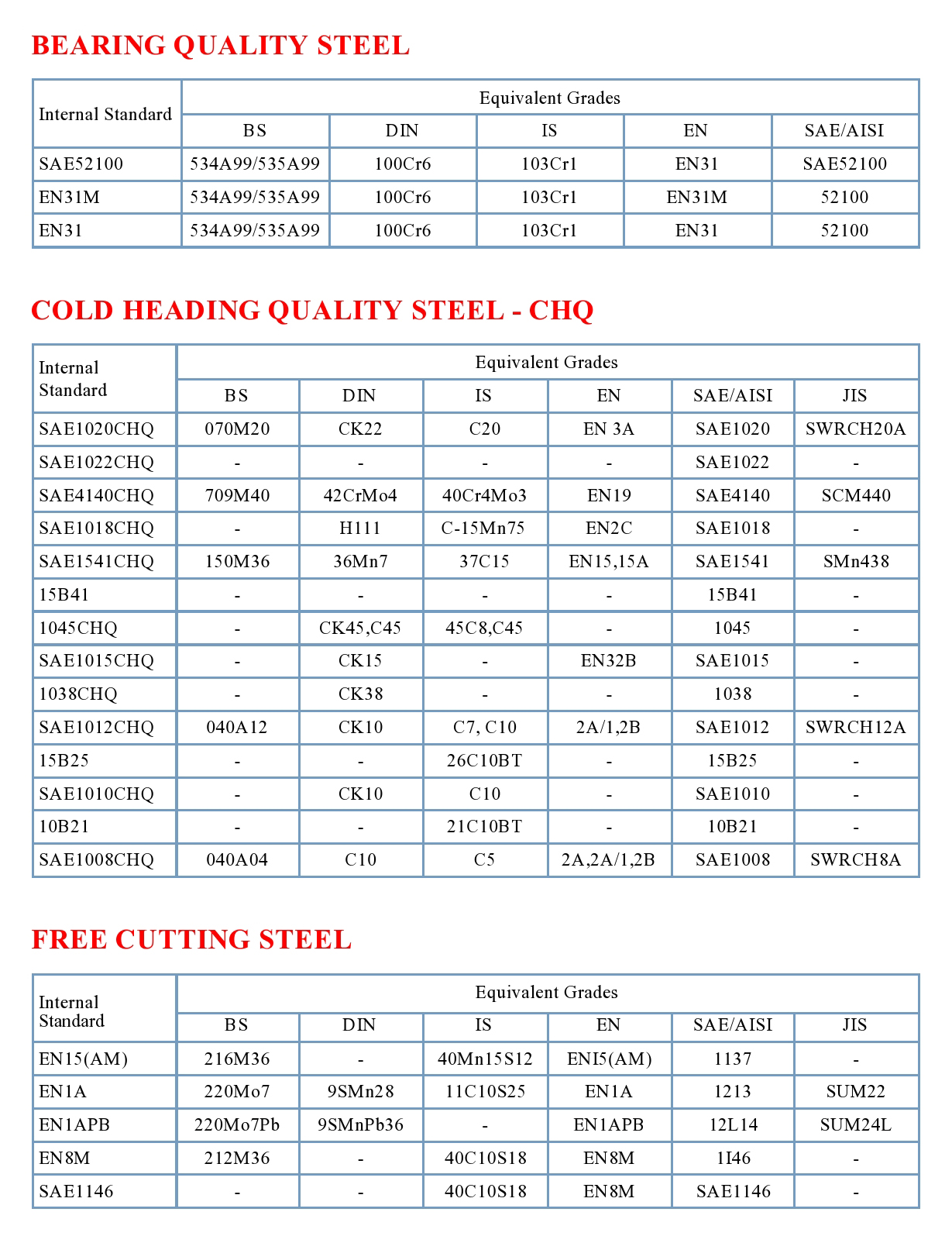

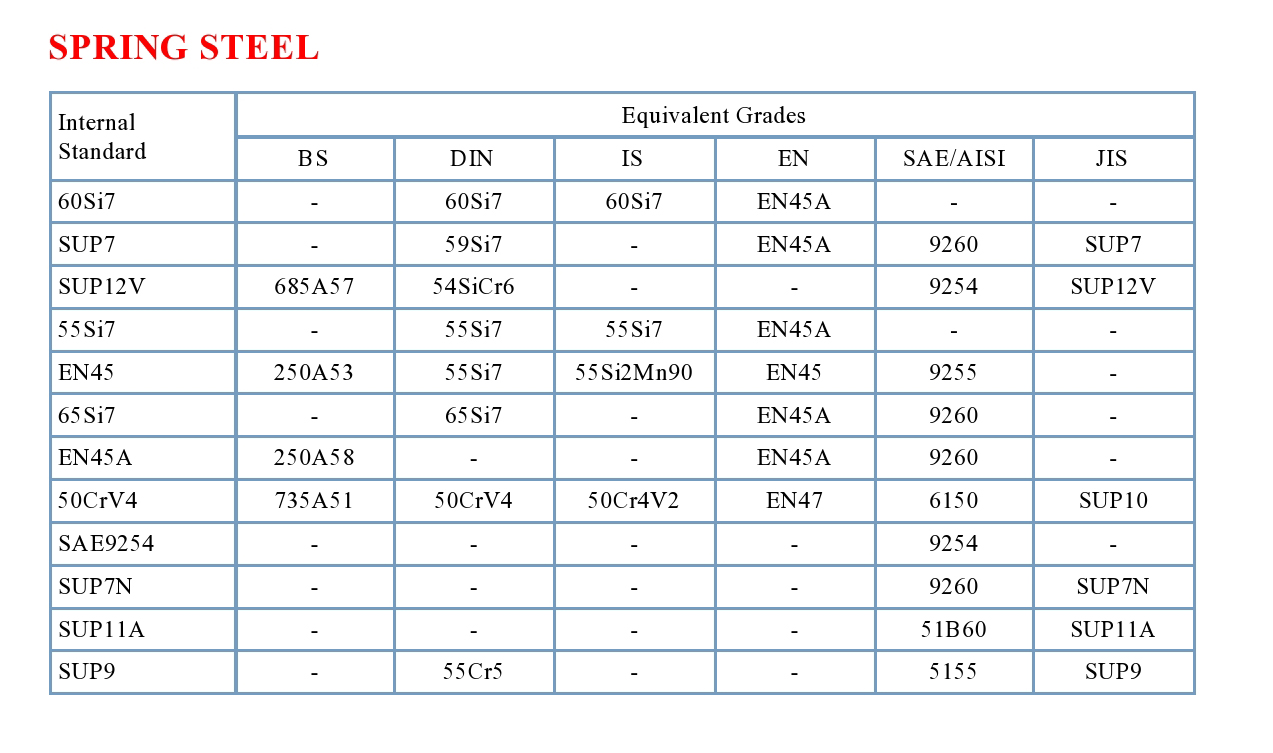

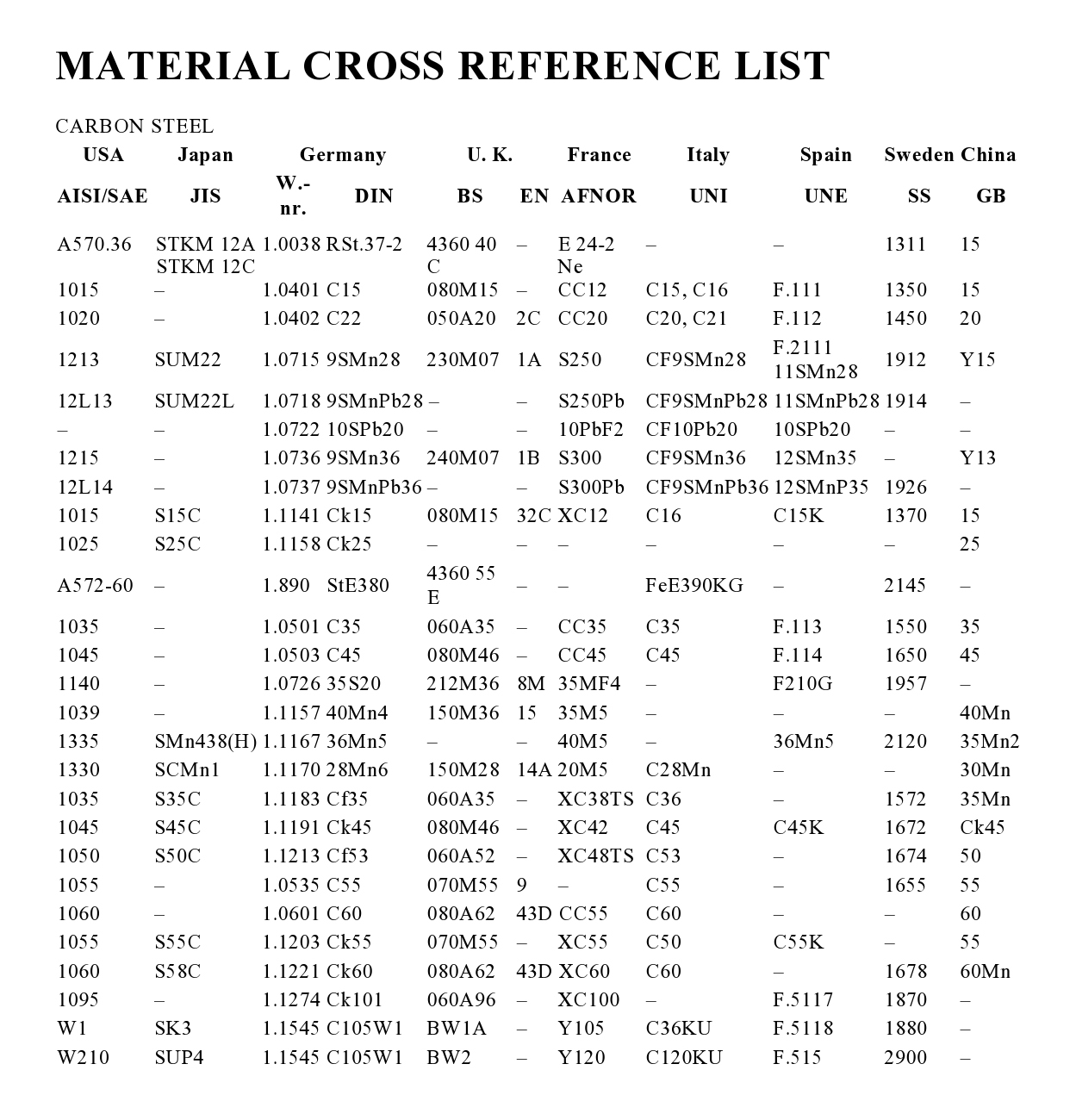

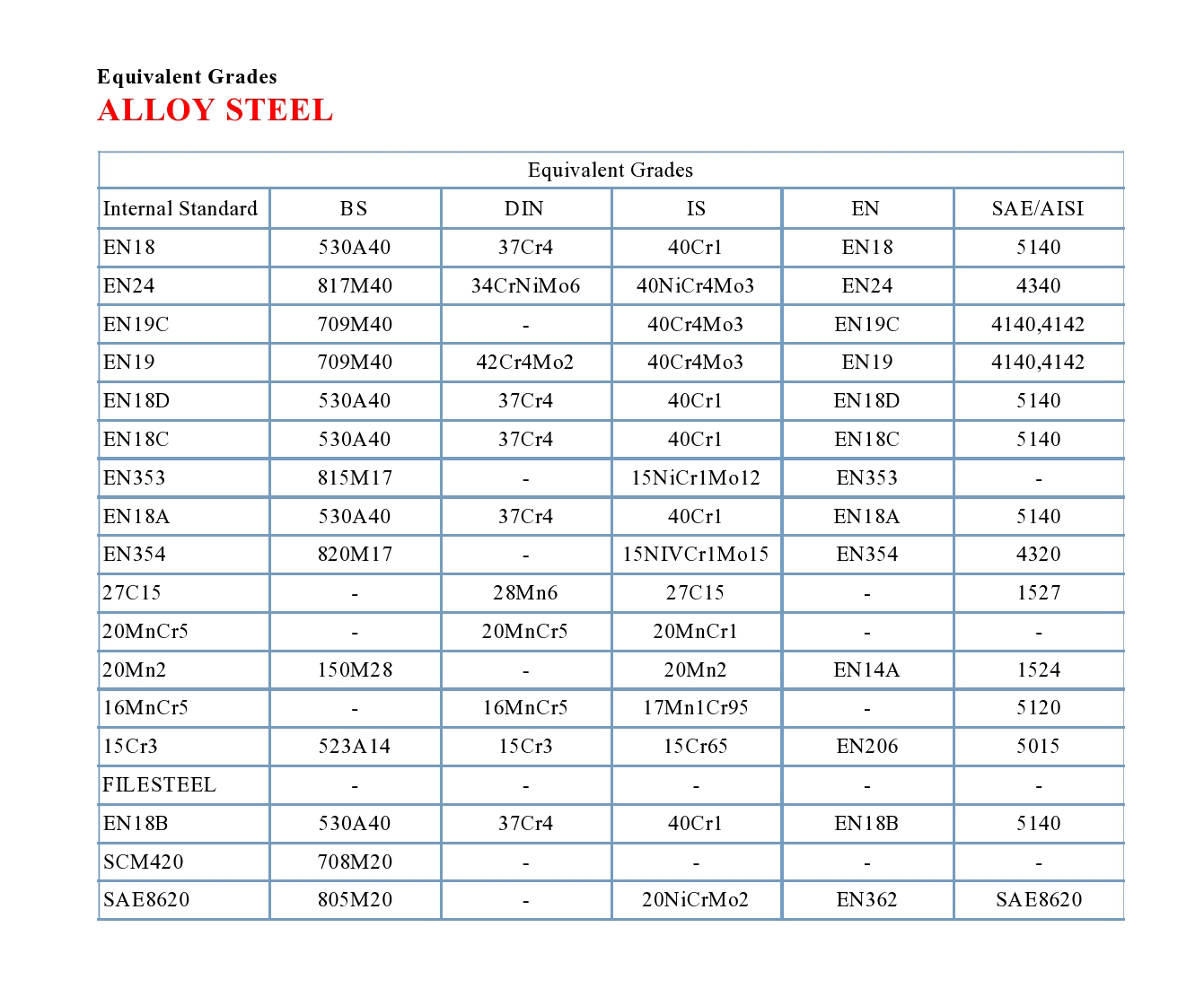

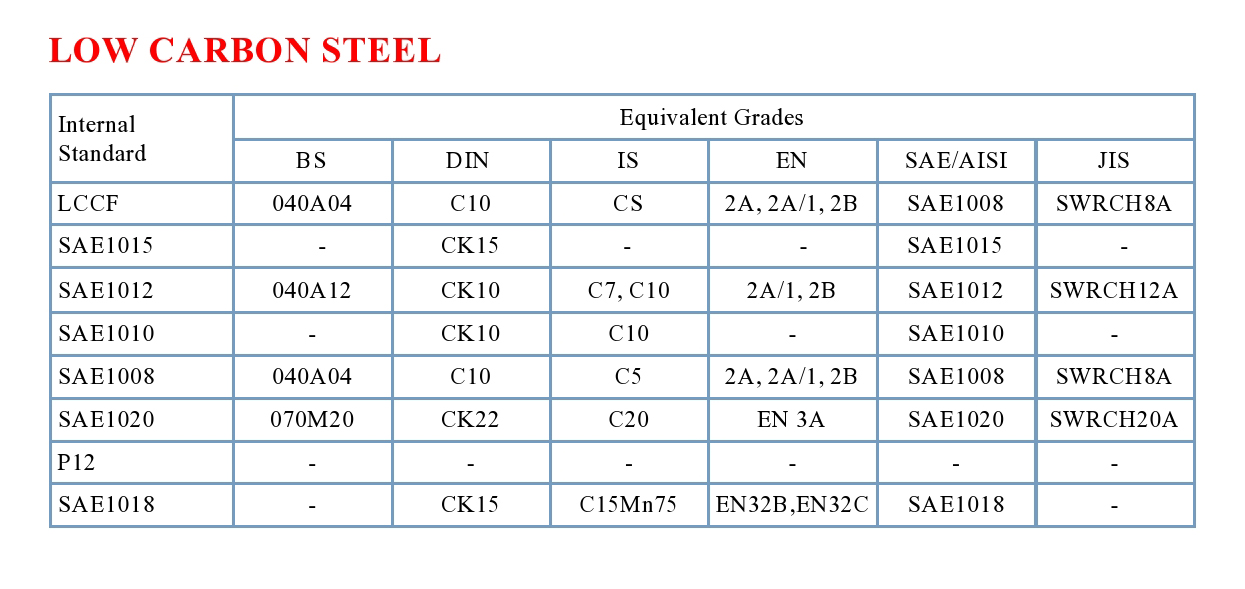

EN SERIES CARBON STEEL









WEIGHT FORMULA


  1. 1. Weight of Stainless Steel Pipes & Tubes
    OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr.

  2. 2. Sheet Width Required for rolled and welded pipes
    O.D.(mm) - THK(mm) x 3.14=SheetWidth

  3. 3. Weight of Stainless Steel Sheets
    Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet

  4. 4. Weight of Stainless Steel Circle & Blanks
    OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs.

  5. 5. Weight of Stainless Steel Rounds
    Dia.(mm)xdia.(mm) x 0.00623=PerMtr.

  6. 6. Weight of Stainless Steel Hexagonal Rods
    Dia.(mm)xDia.(mm) x 0.00679=PerMtr.

  7. 7. Weight of Stainless Steel Square Bars
    Dia.(mm)xDia.(mm) x 0.00787=PerMtr.

  8. 8. Weight of Carbon Steel Pipes & Tubes
    Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr.

  9. 9. Weight of Carbon Steel Sheets & Plates
    Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet

  10. 10. Weight of Copper Pipes
    OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr.

  11. 11. Weight of Lead Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr.

  12. 12. Weight of Lead Sheets(appro.)
    Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet

  13. 13. Weight of Alluminium Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr.

  14. 14. Weight of Alluminium Sheets(appro.)
    Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet

    Tensile Strength Conversion Table
    1. Kg/mm2 x 9.81 = N/mm2=MPa
    2. PSi x 0.0007 = Kg/mm2
    3. KSi x 1000 = PSi
    4. Kg/mm2 x 1.422 = KSi

ALUMINIUM


HOW ALLOYING ELEMENTS AFFECT ALUMINIUM
Series Main Alloy Effect on Alloying Elements
1000 Non (99% Alum.) Unalloyed aluminium is highly corrosion resistant, low strength, workable, conductive, Non-heat-treatable.
2000 Copper Based Gives strength, hardness, machinability, Heat-treatable
3000 Manganese Based Adds moderate strength, good workability. Non-heat-treatable
5000 Magnesium Based Moderate to high strength. Corrosion resistant. Non-heat-treatable
6000 Magnesium & Silicon Based Increase strength, formability, corrosion resistant. Heat-treatable.
7000 Zinc Based For greatest strength. Heat-treatable.

Note: 1000, 3000, 5000 and 6000 alloys have good welding characteristics and corrosion resistant. 2000 and 7000 alloys have higher strength and better machinability, but lower weldability and corrosion resistant.

 WROUGHT ALLOYS: NEAR EQUIVALENT DESIGNATION

INDIA
U.S.A.
 BRITAIN
 CANADA GERMANY
 RUSSIA
 I.S.O.
 FRENCH
New IS Old IS (A.A.)
 (B.S.)
   (DIN) -
 -
 -
19501
 1E
 1050(E.C.)
 1E
 C 1S
 E-Al 99.5
 -
 Al-99.5
 1050A
19500
 1B
 1050
 1B 1S
 A-99.5
 -
 -
 -
19600
 - 1060
 - -
 -
 -
 Al-99.7
 -
19700
 - 1070
 - -
 Al-99.7
 -
 Al-99.8
 -
19800
 1A
 1080
 1A -
 -
 -
 Al-99.0
 1200
19000
 1C
 1100
 1C
 2S
 Al-99.0
 AD
 Al-Cu-6 Bi Pb
 2011
-
 -
 2011
 FC1
 28S
 Al-Cu-Bi-Pb
 -
 -
 -
24345
 H15
 2014
 H15
 B26S
 Al-Cu-Si
 AK
 Al-Cu-4Mg Si
 -
24534
 H14
 2017
 H14
 17S/16S
 -
 D1
 Al-Cu-4Mg 1
 2024
-
 -
 2024
 - 24S
 Al-Cu-Mg.2
 -
 AlCu-4PbMg
 2030
-
 -
 2030
 - -
 Al-Cu-Mg-Pb
 -
 Al-Cu2-Mg1.5-Ni
 2618
-
 -
 2618
 2618
 -
 -
 -
 A-Mn 1
 3003
31000
 N3
 3003
 N3 3S
 Al-Mn
 A-Mn
 Al Mn 1 Mg 1
 3004
- - 3004
 -   Al-Mn.1-Mg.1
   Al Mn 1 Mg 0.50
 3005
-
 - 3005
 -   Al-Mn.1-Mg.0.50
   Al-Si5
 4043
43000
 N21
 4043
 N21
 33S
 Al-Si-5
 AK
 -
 -
46000 N2
 4047
 N2
 35S
 -
 -
 A-Mg-1
 -
51000
 -
 5005
 -
 B57S
 -
 -
 Al-Mg-2
 5251
    5051
 5251
   Al-Mg.2 Mn.0.30
   A-Mg-2.5
 5051
52000
 N4
 5052
 N4
 M57S
 Al-Mg.2
 A-Mg
 A-Mg-4
 -
53000
 N5
 5086
 N5
 54S
 - A-Mg-3
 Al-Mg-4.5 Mn
 5083
54300
 N8
 5083
 N8 D54S
 Al-Mg-4.5 Mn
 -
 Al-Mg.5
 5356
55000 N6
 5056
 N6
 A56S
 Al-Mg.5
 -
 Al-Mg.3-Mn
 5454
    5454
 5454
   Al-Mg.2.7-Mn
 -
 Al.Mg.3
 5754

  5754     Al-Mg.3
Al-Mg-1Si Cu
 -
65032 H20
 6061
 H20
 65S
 Al-Mg-Si Cu
 -
 Al-Mg-Si
 -
63400
 H9
 6063
 H9
 50S
 Al-Mg-Si 0.5
 -
 Al-Si-1 Mg
 6081
64430 H30
 6351
 H30
 B51S
 Al-Mg-Si 1
 AV
 Al-Si-1 Mg Mn
 6082

  6082
 6082
   Al-Mg-Si 1
 - -
 -
64423 H11
 6066
 H11
 C62S
 -
   -
 -
62400
 -
 6005
 -
 C51S
 - - -
 -
63401
 91E
 6101
 91E
 D50S
 E.Al.Mg.Si 0.5
 - -
 -
64401 -
 6201
 -
 -
   - -
 -
- -
 7020
 7020
 -
   - -
 7020
74530
 -
 7039
 -
 D74S
   - -
 3004
- -
 7075
 DTD-5124
 75S
   - Al-Zn 6 Mg Cu
 7075
40800
   8011
       - Al-Fe-Si
 8011

 WROUGHT ALLOYS: CHEMICAL COMPOSITION LIMITS (PER CENT)

ALLOY
(ISS)
EQUIVALENT
ALLOY (A.A.)
 COPPER
MAGNESIUM
SILICON
IRON
MANGANESE
*OTHERS
(TOTAL)
 REMARKS
OLD
 NEW
 U. S. A.
MIN.
MAX.
MIN.
MAX.
MIN.
MAX.
MAX.
MIN,
MAX.
MAX.

1 C
 19000
 1100
 -
 0.10
 -
 -
 -
 0.5
 0.6
 -
 0.1
 0.1
 Aluminium 99.0% Min.
-
 -
 1200
 -
 0.05
 -
 -
 -
 Si+Fe 1.0 -
 -
 0.05
 0.1
 Aluminium 99.0% Min.
1 B
 19500
 1050
 -
 0.05
 -
 -
 -
 0.25
 0.4
 -
 0.05
 0.1
 Aluminium 99.5% Min.
1 E
 19501
 -
 -
 0.04
 -
 -
 -
 0.15
 0.35
 -
 0.03
 0.1
 Aluminium 99.5% Min.
-
 19600
 1060
 -
 0.05
 -
 -
 -
 0.25
 0.35
 -
 0.03
 0.1
 Aluminium 99.6% Min.
H 15
 24345
 2014
 3.8
 5.0
 0.2
 0.8
 0.5
 1.2
 0.7
 0.3
 1.2
 0.5
 -
H 14
 24534
 2017
 3.5
 4.7
 0.4
 1.2
 0.2
 0.7
 0.7
 0.4
 1.2
 0.5
 -
-
 -
 2024
 3.8
 4.9
 1.2
 1.8
 -
 0.5
 0.5
 0.3
 0.9
 0.15
 Zn 0.25
N 3
 31000
 3003
 -
 0.1
 -
 0.1
 -
 0.6
 0.7
 1.0
 1.5
 0.4
 -
N 4
 52000
 5052
 -
 0.1
 1.7
 2.6
 -
 0.6
 0.5
 -
 0.5
 0.4
 Cr + Mn = 0.5
N 5
 53000
 5086
 -
 0.1
 2.8
 4.0
 -
 0.6
 0.5
 -
 0.5
 0.4
 Cr + Mn = 0.5
N 8
 54300
 5083
 -
 0.1
 4.0
 4.9
 -
 0.4
 0.7
 0.5
 1.0
 0.4
 Chromium up to 0.25
H 20
 65032
 -
 0.15
 0.4
 0.7
 1.2
 0.4
 0.8
 0.7
 0.2
 0.8
 0.4
 **Cr = 0.15 - 0.35
-
 -
 6061
 0.15
 0.4
 0.8
 1.2
 0.4
 0.8
 0.7
 -
 0.15
 0.4
 Chromium 0.04 to 0.35
H 9
 63400
 6063
 -
 0.1
 0.4
 0.9
 0.3
 0.7
 0.6
 -
 0.3
 0.4
 -
-
 -
 6066
 0.7
 1.2
 0.8
 1.4
 0.9
 1.8
 0.7
 0.6
 1.1
 0.4
 -
-
 64423
 -
 0.5
 1.0
 0.5
 1.3
 0.7
 1.3
 0.8
 -
 1.0
 -
 -
9 1E
 63401
 6101
 -
 0.05
 0.4
 0.9
 0.3
 0.7
 0.5
 -
 0.03
 0.1
 -
H 30
 64430
 6351
 -
 0.1
 0.4
 1.2
 0.6
 1.3
 0.6
 0.4
 1.0
 0.3
 -
-
 -
 6082
 -
 0.1
 0.6
 1.2
 0.7
 1.3
 0.5
 0.4
 1.0
 0.3
 Chromium up to 0.25


-

-

7010

1.5

2.0

2.1

2.6

-

0.12

0.15

-

0.1

-
 Zn 5.7 - 6.7
Cr 0.05
Zr 0.11 - 0.17

-
 -
 7018
 -
 0.2
 1.2
 1.4
 -
 0.35
 0.4
 0.05
 0.5
 0.15
 Zn 3.5 - 4.5
-


 -


 7020


 -


 0.2


 1.0


 1.4


 -


 0.35


 0.4


 0.05


 0.5


 -


 Zn 4.00 - 5.00
Cr 0.10 - 0.35
Zr 0.08 - 0.20
-


 -


 7150


 1.9


 2.5


 2.0


 2.7


 -


 0.4


 0.15


 -


 0.1


 -


 Zn 5.1 - 6.1
Zr 0.08 - 0.15
Cr 0.18 - 0.28
-

 -

 7175

 1.2

 2.0

 2.1

 2.9

 -

 0.15

 0.2

 -

 0.1

 -

 Zn 5.1 - 6.1
Cr 0.18 - 0.28
-

 -

 7475

 1.2

 1.9

 1.9

 2.6

 -

 0.1

 0.12

 -

 0.06

 -

 Zn 5.2 - 6.2
Cr 0.18 - 0.25

*Titanium and / or other grain refining elements

**Either Mn or Cr shall be present

* This data is for reference purpose only
